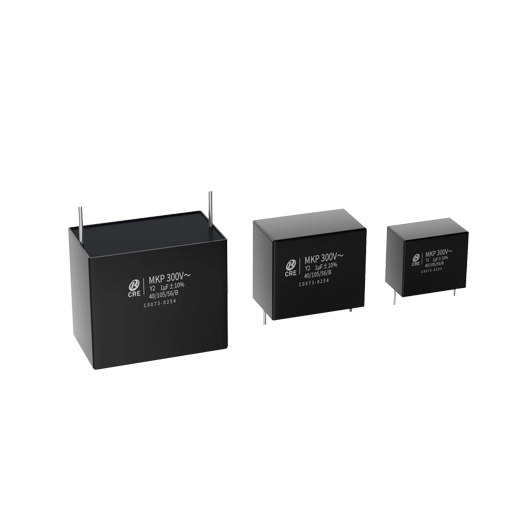

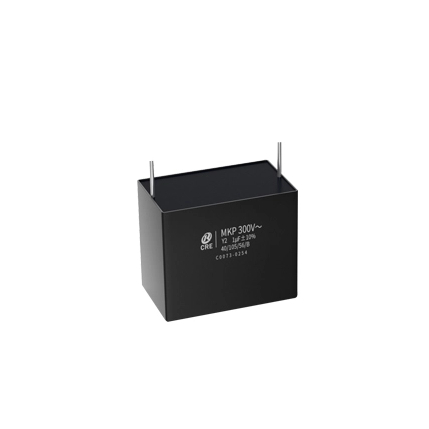

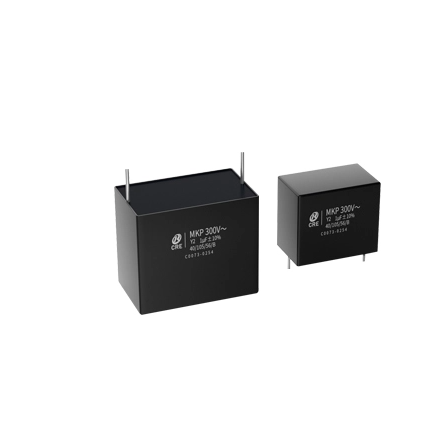

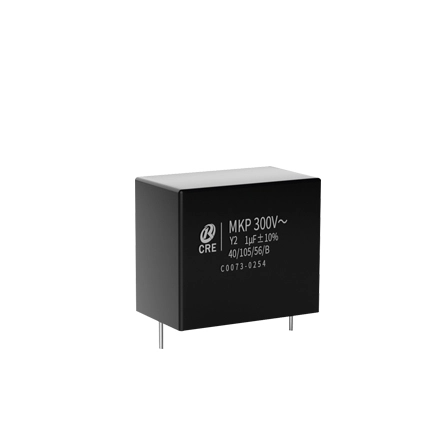

Y2 class for Interference suppression at high operating temperatures.
High degree of interference suppression due to good attenuation and low ESR.
Capacitors connected to the mains between phase or neutral and earthed casing.
AEC-Q200 qualified.
According to RoHS 2015/863/EU.
THB Grade IIIB (85°C, 85% RH, 1000h at Urac).
| Climatic Category / Passive Flammability Category | 40/110/56/B |
| Operating temperature range | -40℃~ +110℃ |
| Capacitance range | 0.001~1.2μF |
| Rated voltage | AC 350V,50~60Hz |
| Maximum continuous DC voltage | DC 1000V |
| Cap.tol | ±10% ；±20% |
| Dissipation factor | tgδ≤0.003 f=100Hz tgδ0≤0.0002 |
| Insulation resistance | V test(VDC) 1min CN≤0.33μF CN≤0.33μF 100±15 ≥100GΩ ≥30000s |
| DC test voltage | CN≤0.33μF CN＞0.33μF 4000 V DC, 2 s 3700 V DC, 2 s |
| AC test voltage | 2000 V AC, 2 s |
Metallized polypropylene structure：
Our film capacitors are built with a robust metallized polypropylene structure for superior durability.
Withstanding overvoltage stressing：
They are designed to withstand overvoltage stress, ensuring reliable performance even under extreme conditions.
Flame resistant abilities：
With excellent active and passive flame-resistant capabilities, our capacitors provide enhanced safety in critical applications.
Y2 class for Interference suppression at high operating temperatures.
High degree of interference suppression due to good attenuation and low ESR.
Capacitors connected to the mains between phase or neutral and earthed casing.
AEC-Q200 qualified.
According to RoHS 2015/863/EU.
THB Grade IIIB (85°C, 85% RH, 1000h at Urac).
| Climatic Category / Passive Flammability Category | 40/110/56/B |
| Operating temperature range | -40℃~ +110℃ |
| Capacitance range | 0.001~1.2μF |
| Rated voltage | AC 350V,50~60Hz |
| Maximum continuous DC voltage | DC 1000V |
| Cap.tol | ±10% ；±20% |
| Dissipation factor | tgδ≤0.003 f=100Hz tgδ0≤0.0002 |
| Insulation resistance | V test(VDC) 1min CN≤0.33μF CN≤0.33μF 100±15 ≥100GΩ ≥30000s |
| DC test voltage | CN≤0.33μF CN＞0.33μF 4000 V DC, 2 s 3700 V DC, 2 s |
| AC test voltage | 2000 V AC, 2 s |
Metallized polypropylene structure：
Our film capacitors are built with a robust metallized polypropylene structure for superior durability.
Withstanding overvoltage stressing：
They are designed to withstand overvoltage stress, ensuring reliable performance even under extreme conditions.
Flame resistant abilities：
With excellent active and passive flame-resistant capabilities, our capacitors provide enhanced safety in critical applications.
