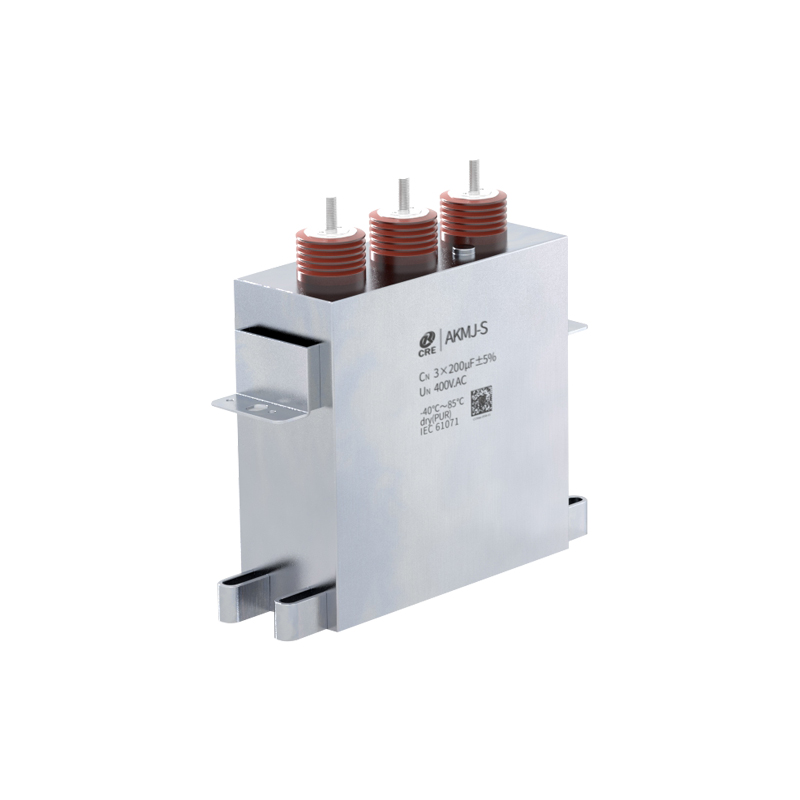

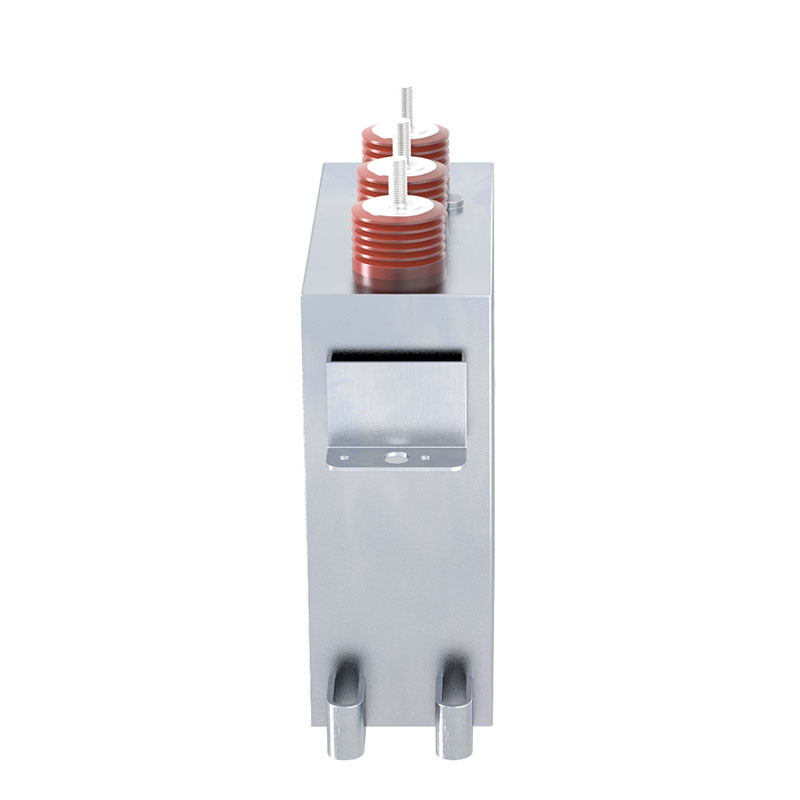

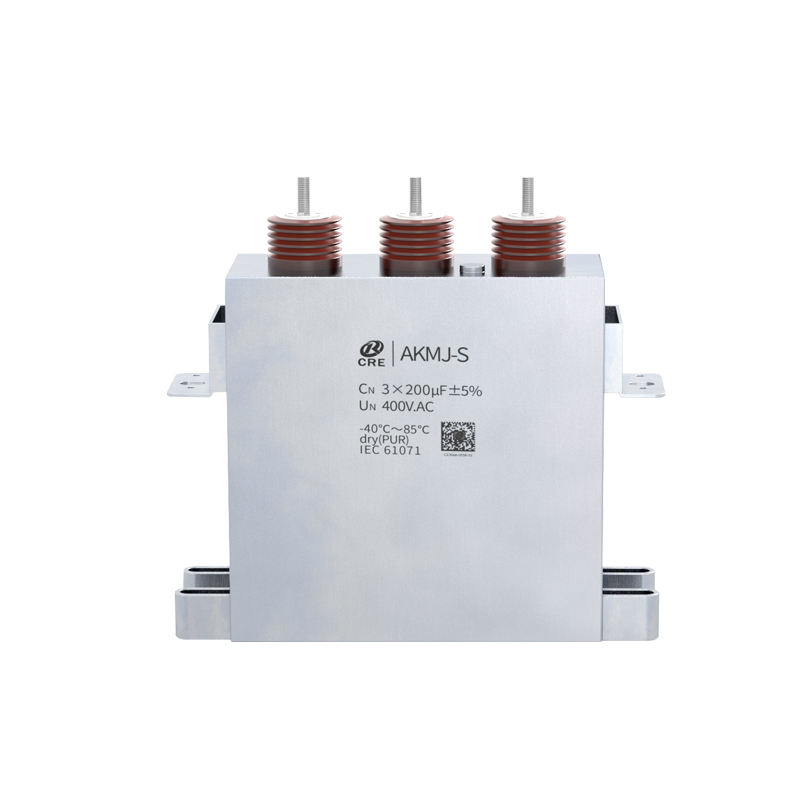

Copper nut / screw leads,easy installation.
Metal package, sealed with resin.
Resistance to high voltage, with self-healing.
High pulse current High dv/dt withstand capability.
Large capacity, small size.
| Operating temperature range | Max.Operating temperature.,Top,max : + 85℃ Upper category temperature : +55℃ Lower category temperature: -40℃ |
| Capacitance range | 3×40μF ~ 3×500μF |
| Rated voltage | 450V.AC/50Hz ~ 1140V.AC/50Hz |
| Cap.tol | ±5%（J） |
| Withstand voltage | Vt - t 2.15Un/10s Vt - c 1000＋2×UN V.AC 60s（min3000V.AC） |
| Over voltage | 1.1Un ( 30% of on - load - dur. ) 1.15Un ( 30min / day ) 1.2Un ( 5min / day ) 1.3Un ( 1min / day ) 1.5Un (100ms every time,1000times during the lifetime ) |
| Dissipation factor | tgδ≤ 0.002 f = 100Hz tgδ0≤0.0002 |
| Insulation resistance | (Built-in discharge resistor) |
| Withstand strike current | See the specification sheet |
| Irms | See the specification sheet |
| ESL | ＜100nH |
| Flame retardation | UL94V - 0 |
| Maximum altitude | 2000m Derating should be considered when the altitude is between 2000m -5000m. (For each increase of 1000m, voltage and current will be reduced by 10%) |
| Life expectancy | 100000h（Un；Θhotspot≤55°C） |
| Reference standard | IEC61071；IEC60831 |
Robust Construction
Housed in a durable metal package and sealed with resin, AC film capacitors are designed to withstand environmental stresses, ensuring enhanced protection and longevity in diverse applications.
dv/dt Withstand Capability
These capacitors feature a high dv/dt withstand capability, enabling them to effectively manage rapid voltage changes, making them suitable for high-frequency applications.
Performance with High Pulse Currents
Capable of handling high pulse currents, AC film capacitors excel in applications that require rapid charge and discharge cycles, ensuring stable and efficient operation.
