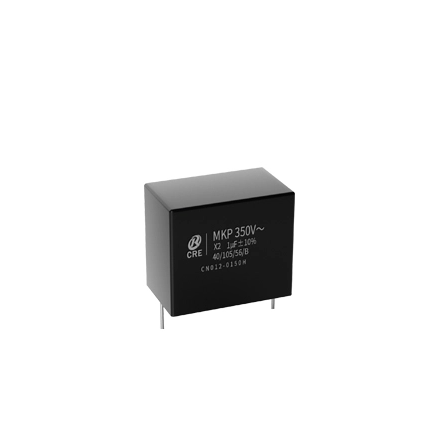

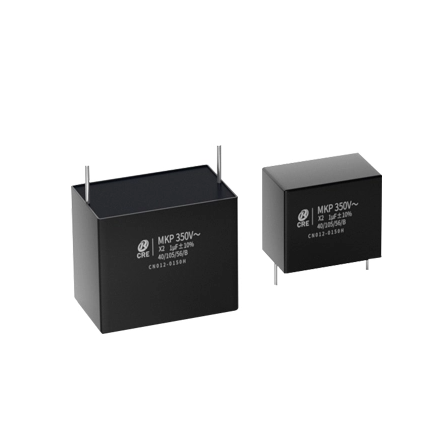

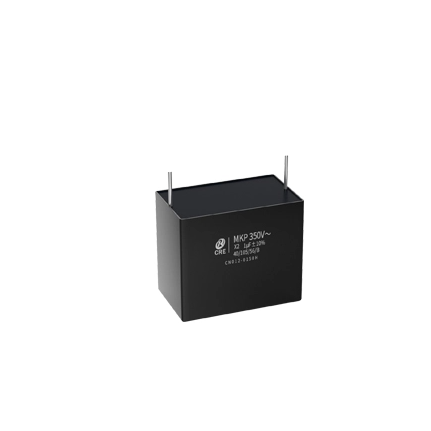

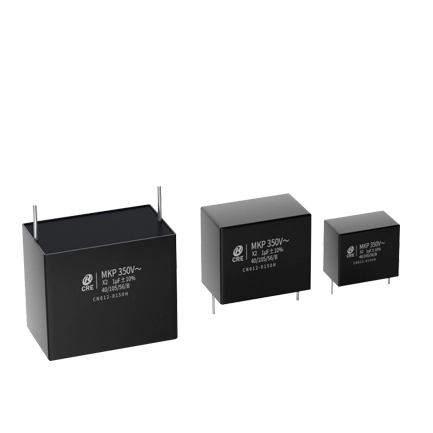

X2 class for interference suppression.
Metallized polypropylene film.
Withstanding overvoltage stressing.
Excellent active and passive flame resistant abilities.
Self-healing properties.
RoHS-compatible.
Suitable for harsh environment conditions.
THB Grade IIIB (85°C, 85% RH, 1000h at Urac).
| Climatic Category / Passive Flammability Category | 40/110/56/B |
| Operating temperature range | -40℃~ +110℃ |
| Capacitance range | 0.01~25μF |
| Rated voltage | AC 350V,50~60Hz |
| Maximum continuous DC voltage | DC 630V |
| Cap.tol | ±5% (J) ；±10% (K) ；±20% (M) |
| Dissipation factor | at CN≤2.2μF CN＞2.2μF 1KHz,20℃ 1×10^-3 3×10^-3 |
| Insulation resistance | V test(VDC) 1min CN≤0.33μF CN≤0.33μF 100±15 ≥100GΩ ≥30000s |
| DC test voltage | 4.3UR (DC)，2s |
Long Life
CRE Capacitors Feature Long Life, Self-Healing Capabilities, And Rugged Construction, Making Them Suitable For Industrial And Electronic Equipment With High Reliability Requirements.
Self-Healing
The Self-Healing Properties Ensure That Small Defects Are Automatically Repaired For Continued Stable Operation.
Low Loss
Generates Less Heat, Improves Energy Efficiency, Is Suitable For High-Frequency And High-Performance Applications, And Ensures Stable Operation Of The Equipment Under High Load.
