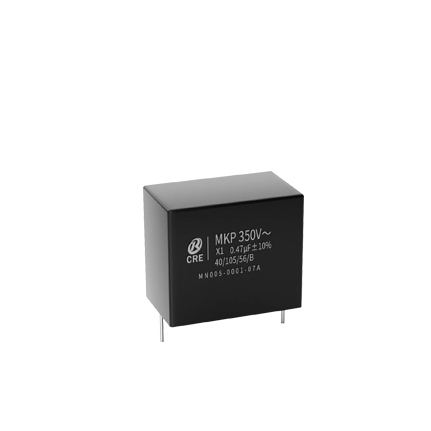

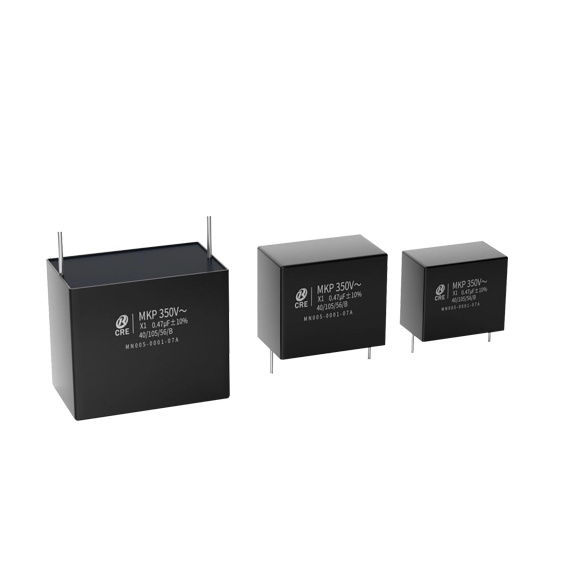

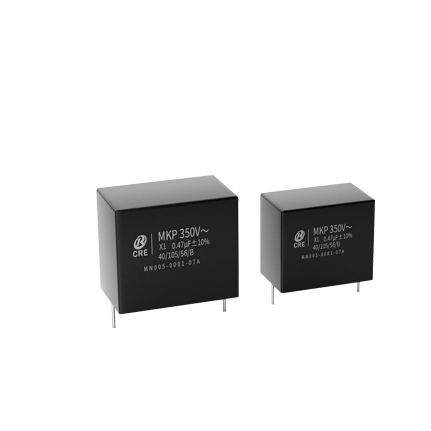

X1 class for interference suppression.
For series impedance.
The maximum ambient temperature must not exceed 110 °C.
Rated voltage pulse slope: If the pulse voltage is lower than the rated voltage, the values of the specific reference data can be multiplied by 615 Vdc and divided by the applied voltage.
RoHS-compatible.
THB Grade IIIB (85°C, 85% RH, 1000h at Urac).
| Climatic Category / Passive Flammability Category | 40/110/56/B |
| Operating temperature range | -40℃~ +110℃ |
| Capacitance range | 0.001~10μF |
| Rated voltage | AC 440V/480V/530V,50~60Hz |
| Maximum continuous DC voltage | DC 1000V |
| Cap.tol | ±5% (J) ；±10% (K) ；±20% (M) |
| Dissipation factor | CN≤0.47μF 0.47μF＜CN≤1.0μF CN＞1.0μF ≤1×10 (1kHz,20℃) ≤2×10 (1kHz,20℃) ≤3×10 (1kHz,20℃） |
| Insulation resistance | V test(VDC) 1min CN≤0.33μF CN＞0.33μF 100±15 ≥30,000MΩ ≥10000s |
| DC test voltage | 4.3UR (dc），2s |
Robust Performance for Demanding Applications：
Designed to operate reliably in harsh environments, our products meet THB IIIB certification per IEC 60384-14 standard, enduring 1,000 hours of extreme conditions (85°C | 85% RH) under full AC/DC rated voltage stress.
Superior Electrical Capabilities：
Engineered to deliver 50% higher dv/dt tolerance and enhanced current-handling capacity compared to industry counterparts, ensuring optimal performance in high-stress power scenarios.
Eco-Conscious Compliance：
Fully compliant with global environmental regulations, including ROHS hazardous substance restrictions, guaranteeing safe and sustainable integration across applications.
